Luoshida DC 10-40V M30 Plastic Cylindrical Capacitive Proximity Sensor Switch
Quick detail information :
Series : M30 Capacitive proximity sensor

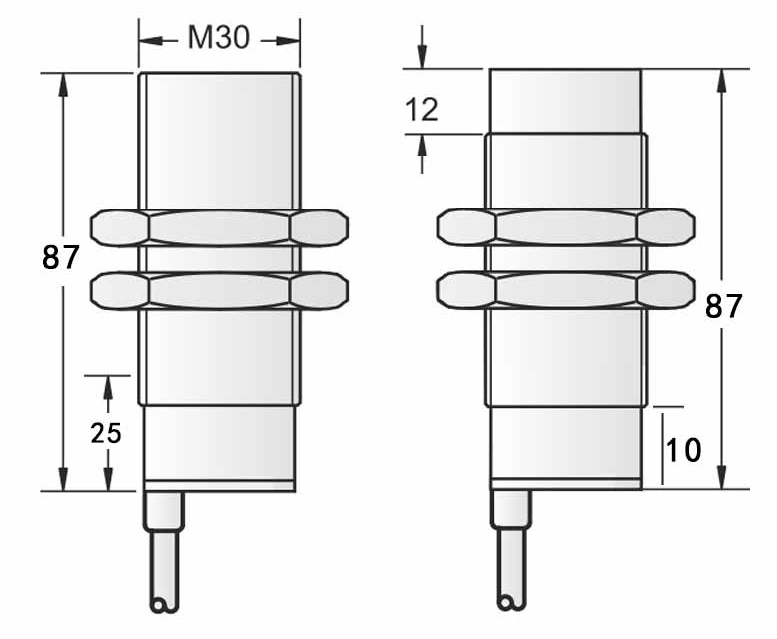

Size : M30*1.5*87mm
Housing Material : ABS plastical
Mounting : Non-shielded
Sensing Distance Sn(mm): 2-30mm adjustable
Operating Voltage : DC 10-40V
Output function : NPN/PNP NO/NC
Protection Category : IP67
connection : 2M PVC cable
Specification of the sensor :
| DC M30 Capacitive Proximity Sensor with cable |
| Size | M30*87mm |
| Mounting | ● shielded | ○ Non-shielded |
| Sensing Distance Sn(mm) | 1~20mm adjustable | 1~30mm adjustable |
| Housing Material | ABS |
| With or Without LED | ● with LED |
| Operating Voltage | 10-40VDC |
| Ripple | <10% |
| No Load Current | <10mA |
| Max.Load Current | 150mA |
| Leakage Current | <0.01mA |
| Voltage Drop | <1.5V |
| Switching Frequency | 50Hz |
| Response Time | 1.5ms |
| Switching Hysteresis | <15%(Sr) |
| Repeat Accuracy | <5%(Sr) |
| Protection Category | IP67 |
| Operating Temperature | -25°C - +70°C |
| Temperature Drift | <10%(Sr) |
| Short Circuit Protection | YES |
| Overload Trip Point | 180mA |
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) |
| Shock/Vibration | IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2 |
| Material Active Face | ABS |
| Connection | D5 3*0.34 2M PVC |
| DC 3 wire 10-40V NPN NO | C1P30*NO | C2P30*NO |
| DC 3 wire 10-40V NPN NC | C1P30*NC | C2P30*NC |
| DC 3 wire 10-40V PNP NO | C1P30*PO | C2P30*PO |
| DC 3 wire 10-40V PNP NC | C1P30*PC | C2P30*PC |
| DC 4 wire 10-40V NPN NO+NC | C1P30*NS | C2P30*NS |
| DC 4 wire 10-40V PNP NO+NC | C1P30*PS | C2P30*PS |
FAQ :
Q1 , What about the samples?
A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.
Q2, What is the MOQ?
A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.
Q3, How about the delivery time?
A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.
Q4, How about the after-sales service?
A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.
Q5, How about the packing?
A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
